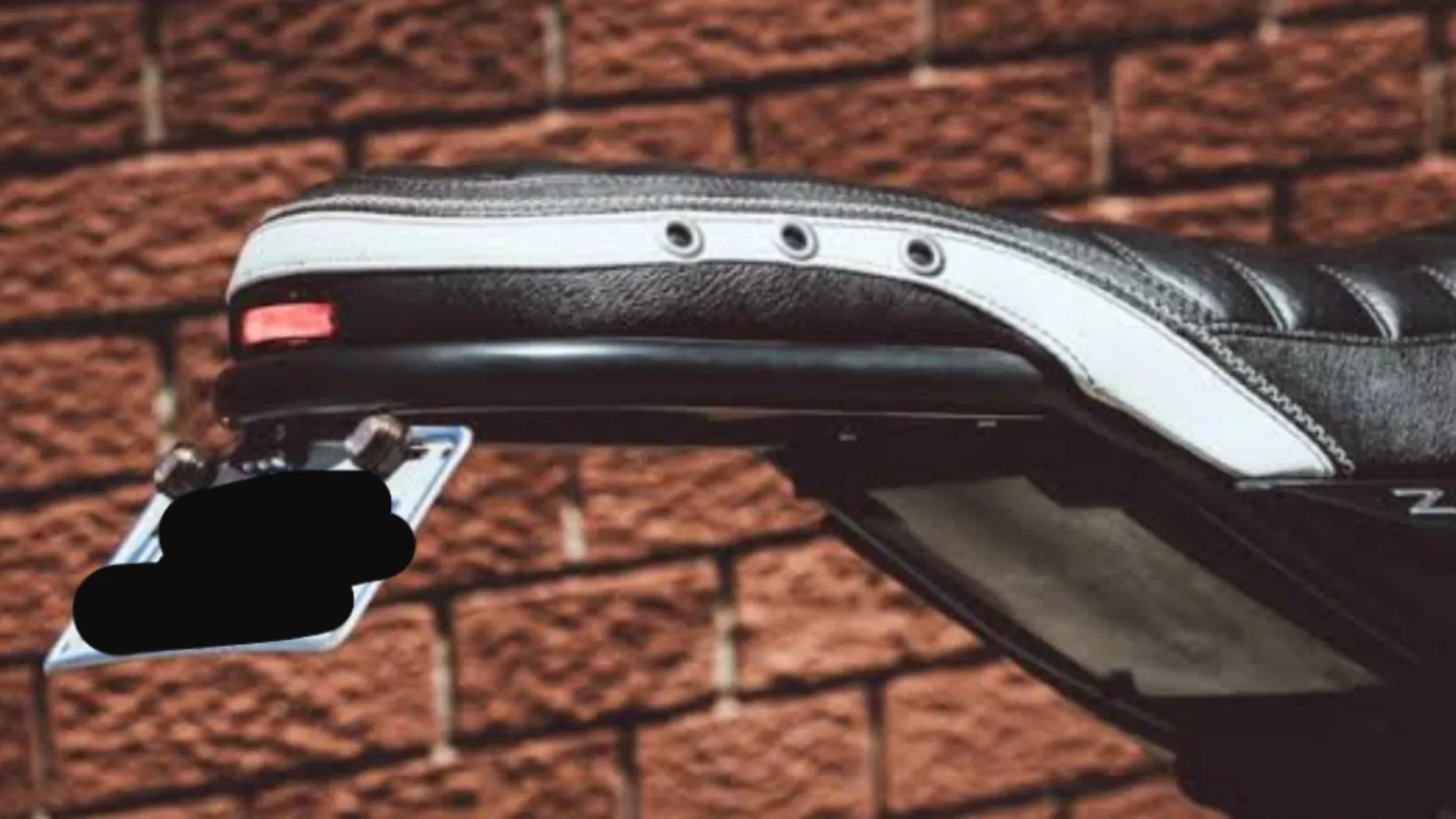

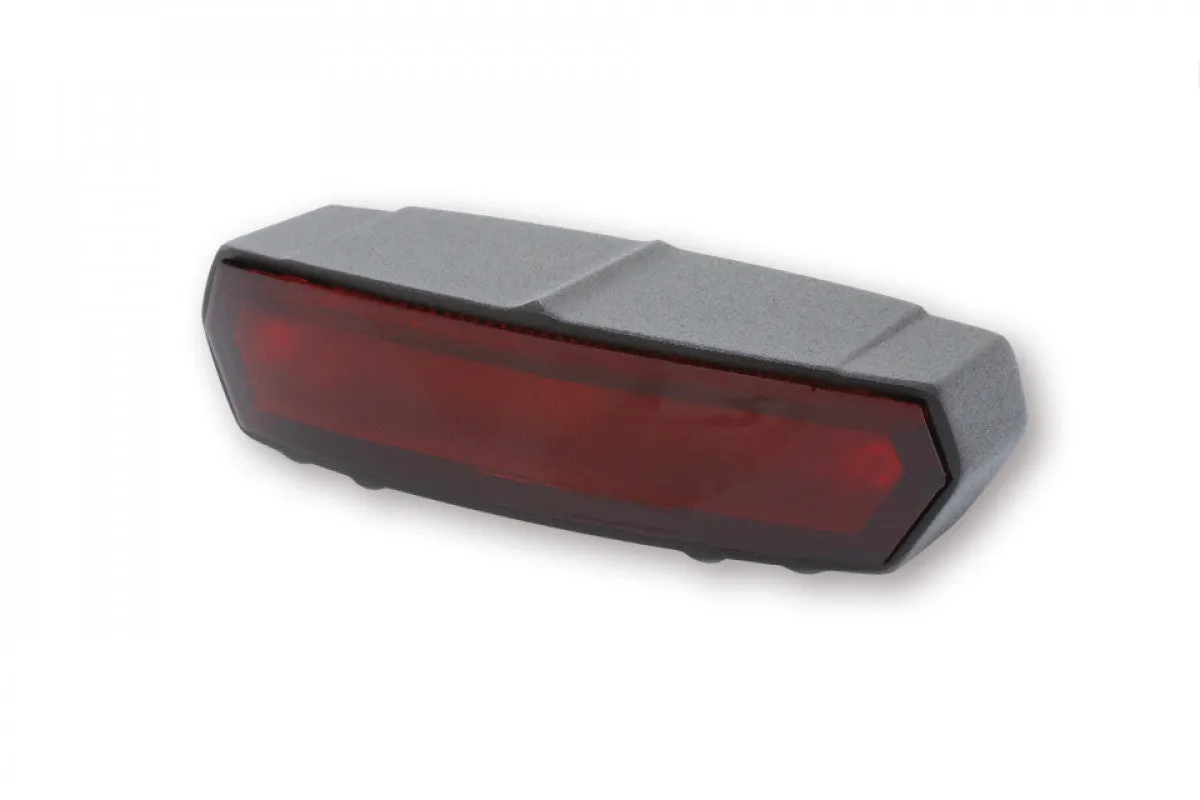

SHIN YO LED- tail light LIGHT GUIDE with brake light function.
Universal use LED tail light with license plate light, packed in a high quality metal housing and red glass. Due towith the innovative LIGHT-GUIDE technology the light emission appears as a continuous strip, E-.tested.

dimensions
width: 84 mm
height: 25 mm
depth: 37 mm
br/>fixing screws: 2 x M4(rear side of housing)

Connections:
Green cable = ground (-)
Yellow cable = tail light ( )
Blue cable = stop light ( )

>Blue cable = brake light ( )

Blue cable = brake light ( )

Blue cable: 1 piece, in different housing coloursavailable.


Note: The tail light must not be connected without the black electronics box included in the scope of delivery!
